50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch

Ask Lasest Price
Brand Name :	FONGKO
Model Number :	FKPAT-079
Price :	Negotiatable

Add to Cart

Product Details
Company Profile

50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch

Product Description

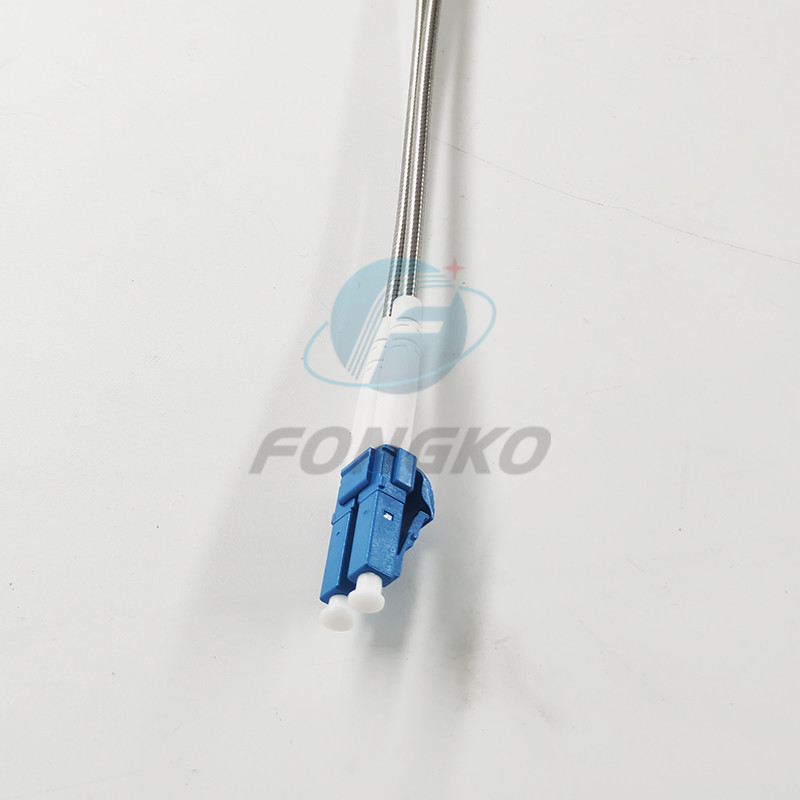

Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable

1.2 Application
Mainly used in wireless base station horizontal and vertical cabling
1.3 Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;

3, The mechanical characteristics of jacket meet the requirements
of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and
splice, and with big capacity data transmission;
5, Meet various requirements of market and clients

Fiber CountCable Dimension
mmCable Weight
kg/kmTensile
NCrush
N/100mmMin. Bend Radius
mmRange of Temperature
Long TermShort TermLong TermShort TermDynamicStatic
27.042.32004001100220020D10D-30-+70
Note: 1. All the values in the table, which are for reference only,
are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable
of 2.0 outer diameter;
3. D is outer diameter of the round cable;

ITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125
Operating wavelength
850nm, 1300nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C
ITEMPARAMETER
Connector typeDLC/UPC
Insertion Loss<=0.3db
Return Loss>=35db
Fiber modeMulti-mode,50/125
Operating wavelength850nm, 1300nm
Test wavelength850nm, 1300nm
Repeatability<=0.1
Interchangeability<=0.2dB
Durability<=0.2dB
Fiber Length1m, 2m….. any length optional.
Length and tolerance10cm
Operating Temperature-40C ~ +85C
Storage Temperature-40C ~ +85C

ITEMPARAMETER
Connector typeDLC/UPC
Insertion Loss<=0.3db
Return Loss>=35db
Fiber modeMulti-mode,50/125
Operating wavelength850nm, 1300nm
Test wavelength850nm, 1300nm
Repeatability<=0.1
Interchangeability<=0.2dB
Durability<=0.2dB
Fiber Length1m, 2m….. any length optional.
Length and tolerance10cm
Operating Temperature-40C ~ +85C
Storage Temperature-40C ~ +85C
ITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125
Operating wavelength
850nm, 1300nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85CITEM
PARAMETER
Connector type
DLC/UPC
Insertion Loss
<=0.3db
Return Loss
>=35db
Fiber mode
Multi-mode,50/125
Operating wavelength
850nm, 1300nm
Test wavelength
850nm, 1300nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C

Fiber Count
Cable Dimension
mm
Cable Weight
kg/km
Tensile
N
Crush
N/100mm
Min. Bend Radius
mm
Range of Temperature
Long Term
Short Term
Long Term
Short Term
Dynamic
Static
2
7.0
42.3
200
400
1100
2200
20D
10D
-30-+70
Note: 1. All the values in the table, which are for reference only,
are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable
of 2.0 outer diameter;
3. D is outer diameter of the round cable;Fiber CountCable Dimension
mmCable Weight
kg/kmTensile
NCrush
N/100mmMin. Bend Radius
mmRange of Temperature
Long TermShort TermLong TermShort TermDynamicStatic
27.042.32004001100220020D10D-30-+70
Note: 1. All the values in the table, which are for reference only,
are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable
of 2.0 outer diameter;
3. D is outer diameter of the round cable;

Fiber Count
Cable Dimension
mm
Cable Weight
kg/km
Tensile
N
Crush
N/100mm
Min. Bend Radius
mm
Range of Temperature
Long Term
Short Term
Long Term
Short Term
Dynamic
Static
2
7.0
42.3
200
400
1100
2200
20D
10D
-30-+70
Note: 1. All the values in the table, which are for reference only,
are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable
of 2.0 outer diameter;
3. D is outer diameter of the round cable;

50m Optical Cable Assembly DLC GYFJH 2 Core Outdoor Protected Branch

Company Profile

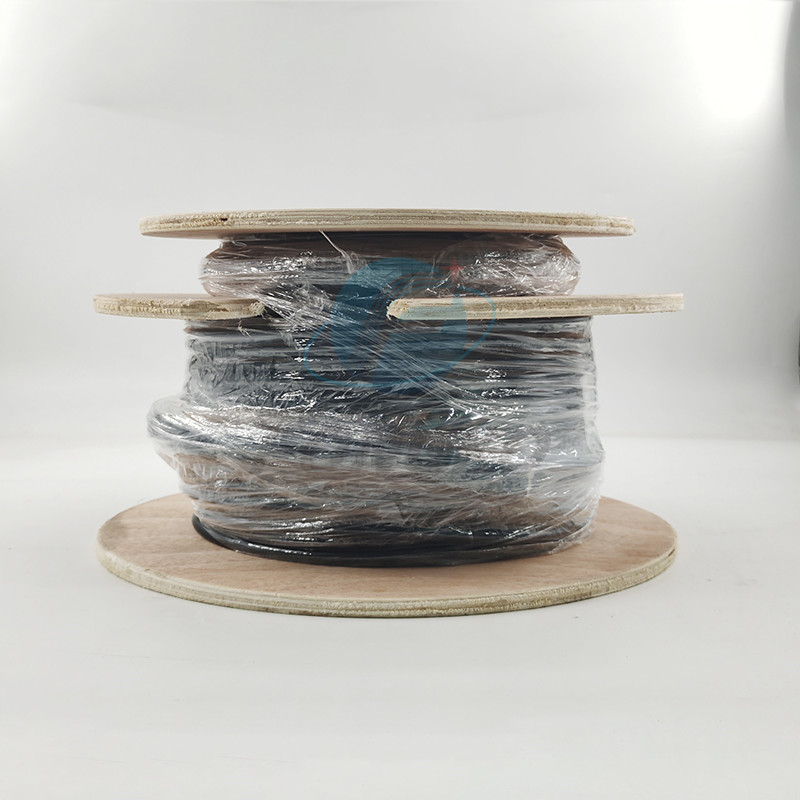

PACKING&SHIPPING
