    Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core

    Ask Lasest Price
    Model Number : FK-A2-16T
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

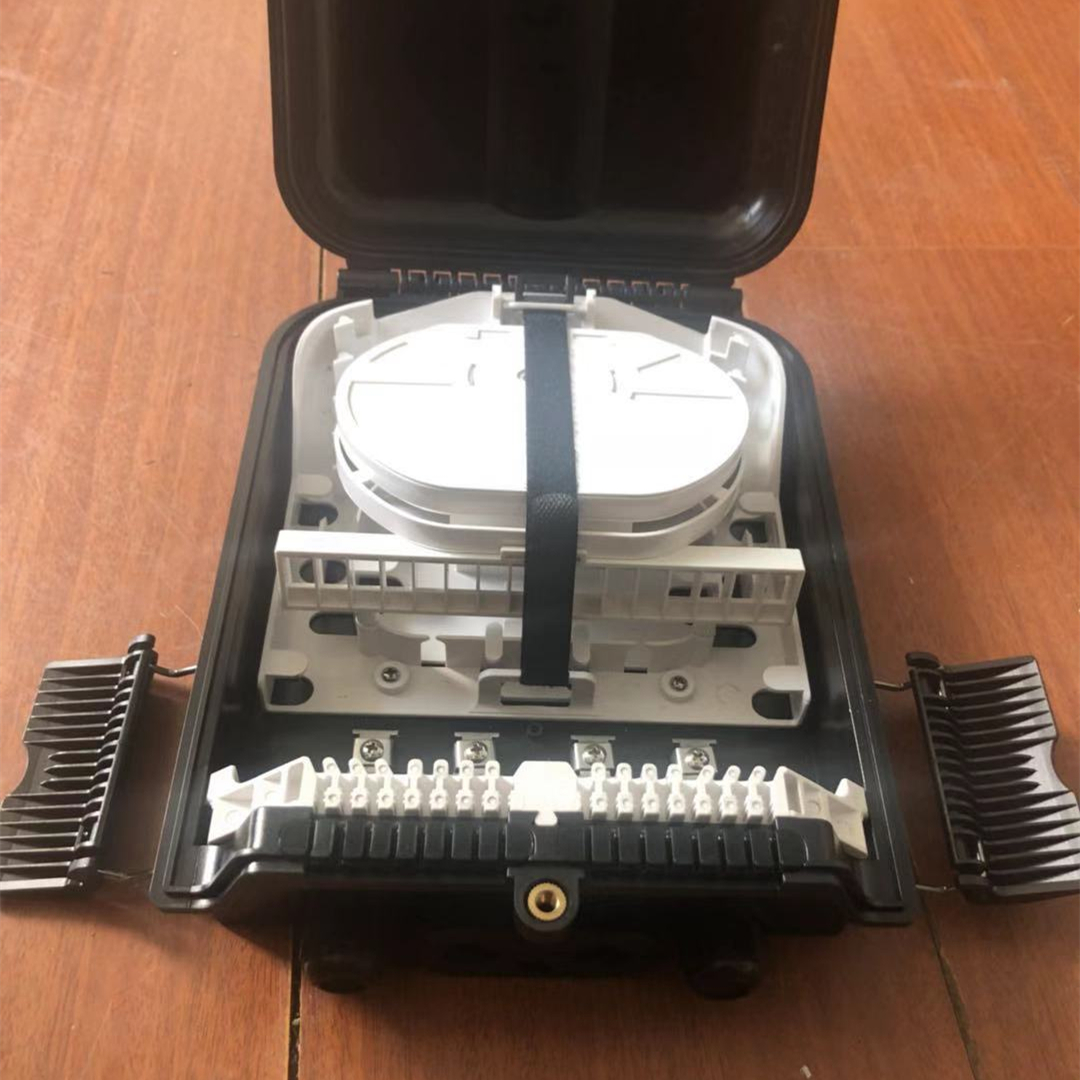

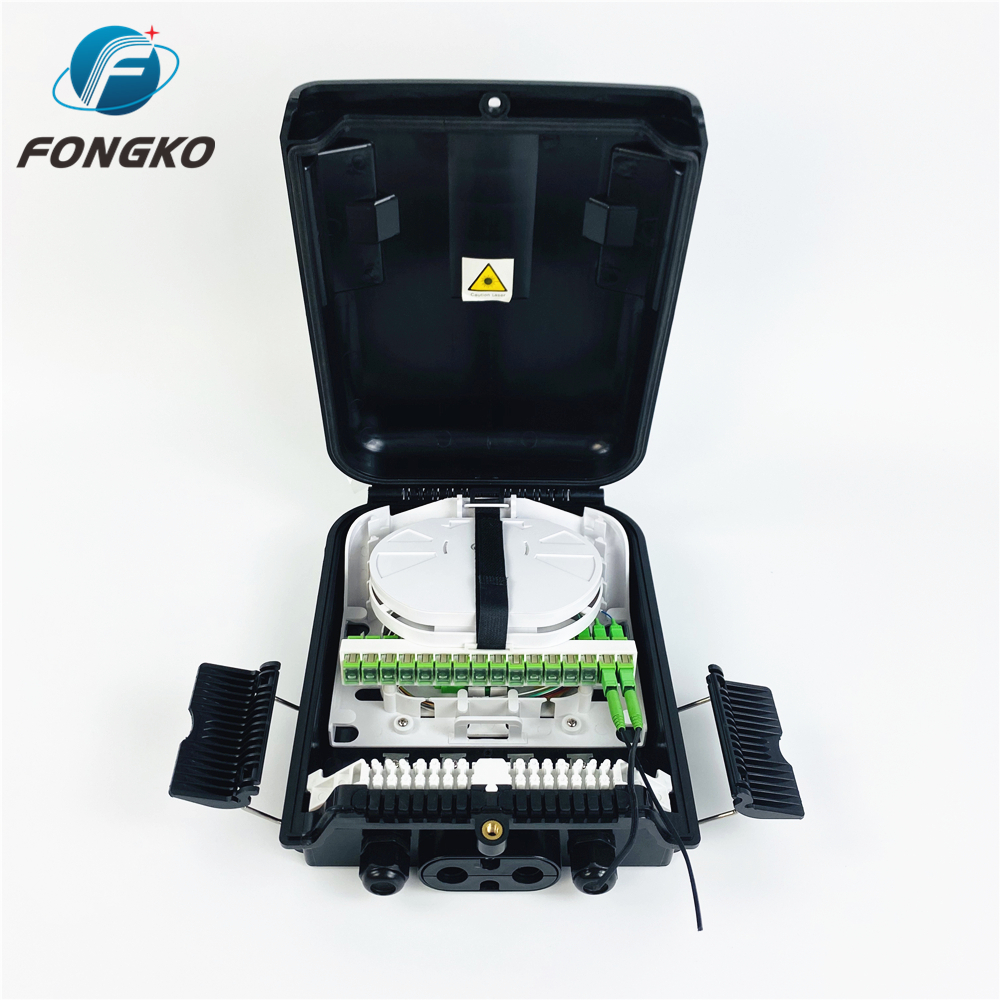

    Outdoor Waterproof Black Fiber Optical Fat Ftth Splitter Box Distribution 16 Core

    Product Description

    1, Description

    The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
    The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

    2, Features

    (1) Total enclosed structure.
    (2) Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65/66.
    (3) Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
    distribution...etc all in one.
    (4) Cable,pigtails,and patch cords are running through their own paths without disturbing each other, micro type PLC splitter inst
    allation,easy maintenance.
    (5) Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.
    (6) Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.

    3, Specification

    (1) Environmental requirement
    Working temperature:-40℃~+85℃ Relative humidity:≤85%(+30℃) Atmospheric pressure:70KPa~106Kpa
    (2) Main technical datasheet Insertion loss:≤0.15dB
    UPC return loss:≥50dB APC return loss:≥60dB
    (3) Thunder-proof technical datasheet
    The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104 MΩ/500V(DC);IR≥2´104 MΩ/500V
    The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
    Configuration tableWall mountingPole mounting installation
    Model16 core16 core
    Size(mm)290*210*82290*210*82
    MaterialPC/ABSPC/ABS
    Colorblackblack
    Inner box size(mm)300*220*95300*220*115
    Individual weight(kg)1.31.4
    Outer box size(mm)500*310*460600*310*460
    Gross weight(kg)13.714.7
    Outer box capacity(PCS)1010
    Into the largest cable diameter(mm)
    12

    12
