    G655 4mm Duplex Armored Fiber Optic Cable Gjsfjbv For Indoor Distribution

    Ask Lasest Price
    Model Number : FKCAB-022
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

    G655 4mm Duplex Armored Fiber Optic Cable Gjsfjbv For Indoor Distribution

    Product Description

    2022 New Gjsfjbv Cable A Fibre Optique Communication Cables Indoor Duplex Armored Fiber Optic Cable

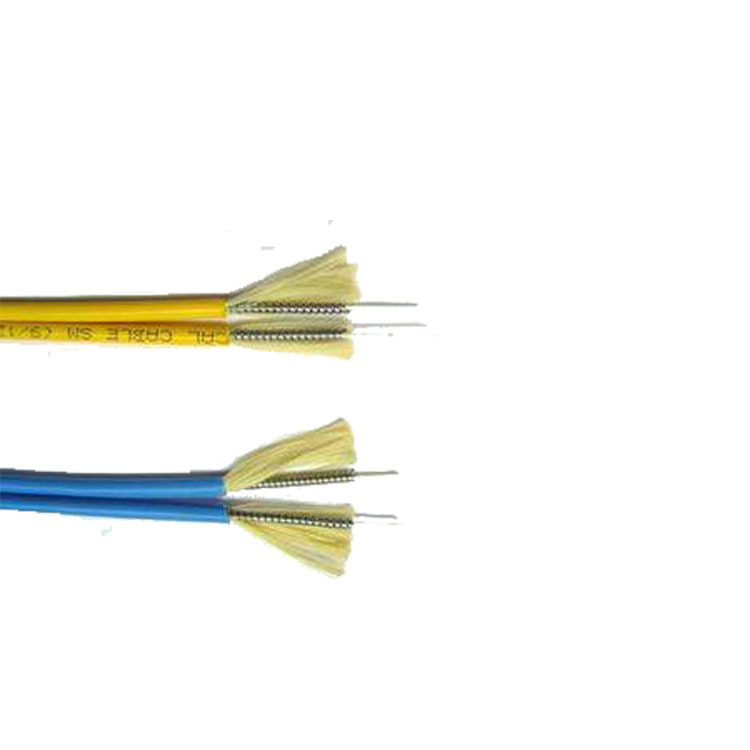

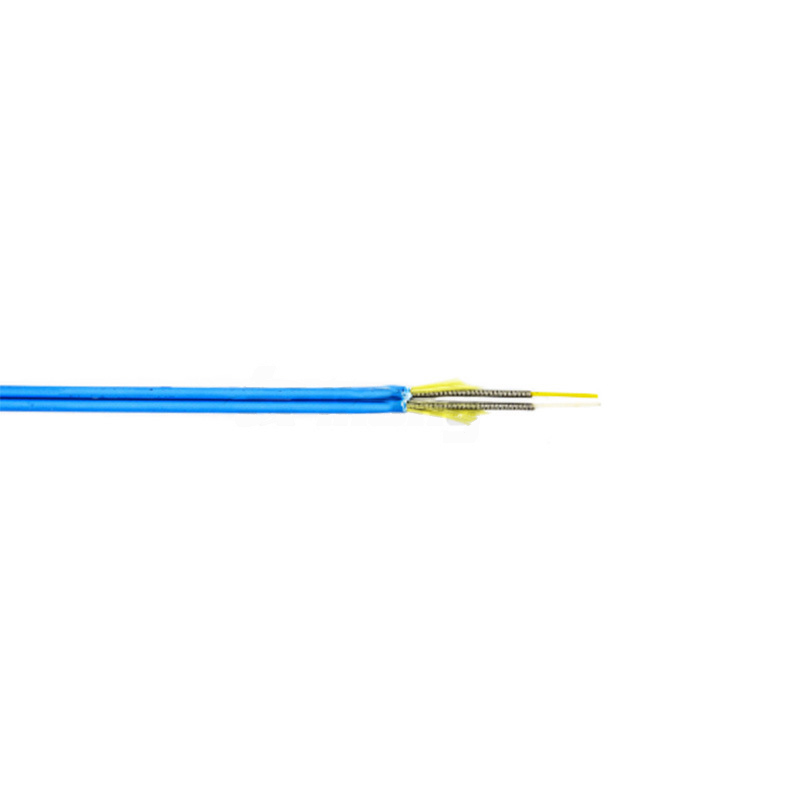

    GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath.

    Applications:

    Fiber optic equipment and instrument
    Backbone network to the equipment in the building
    Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
    All kinds of connector , fiber optic pigtails, patch cords.
    Long distance, outdoor/indoor cabling, trunking,etc
    Indoor cabling,building cabling,LAN, etc
    Small installation space cabling

    Features:

    High strength aramid yarn,high performance outer sheath. Good mechanical and environmental performance.
    Flame retardant outer sheath provide good safety.Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
    Optical Characteristics
    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm
    ≤3.0dB/km
    ≤3.0dB/km
    @1300nm
    ≤1.0dB/km
    ≤1.0dB/km
    @1310nm
    ≤0.36dB/km
    ≤0.36dB/km
    @1550nm
    ≤0.22dB/km
    ≤0.23dB/km
    Bandwidth
    (Class A)
    @850
    ≥500MHZ·km
    ≥500MHZ·km
    @1300
    ≥1000MHZ·km
    ≥600MHZ·km
    Numerical Aperture
    0.200±0.015NA
    0.275±0.015NA
    Cable Cut-off Wavelength λcc
    ≤1260nm
    ≤1480nm
    Technical Parameters

    Cable Type
    Tight Diameter
    mm

    Cable Diameter
    mm

    Cable Weight
    Kg/km

    Tensile Strength Long/Short Term
    N

    CrushResistanceLong/Short Term
    N/100m

    Bending Radius Static/Dynamic
    mm

    Bending Radius Static/Dynamic
    mm
    GJSFJBV
    0.6
    2.0*4.1
    30
    300/750
    200/1000
    20H/10H
    20D/10D
    GJSFJBV
    0.6
    2.8*5.7
    35
    300/750
    200/1000
    20H/10H
    20D/10D
    GJSFJBV
    0.9
    3.0*6.1
    43
    300/750
    200/1000
    20H/10H
    20D/10D
