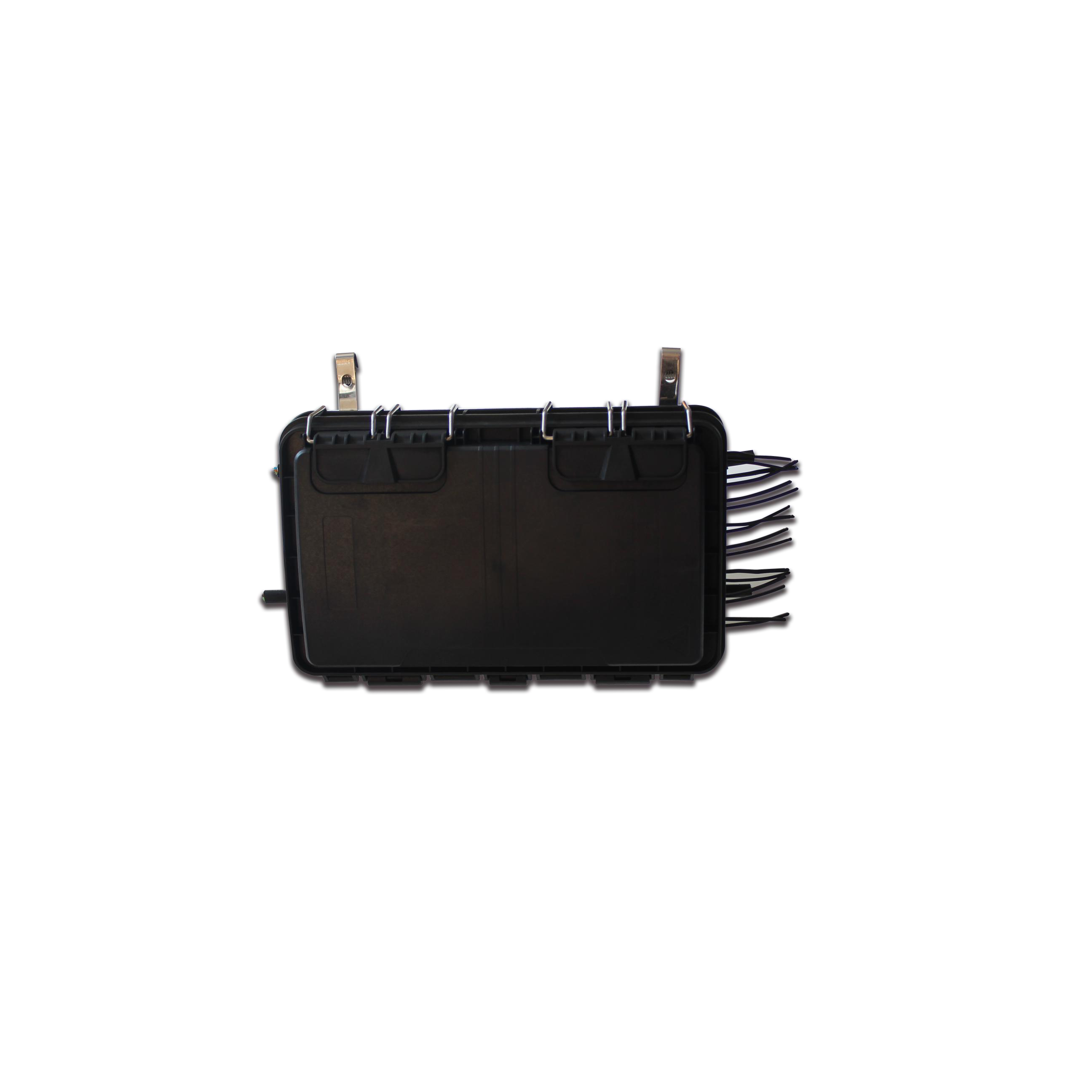

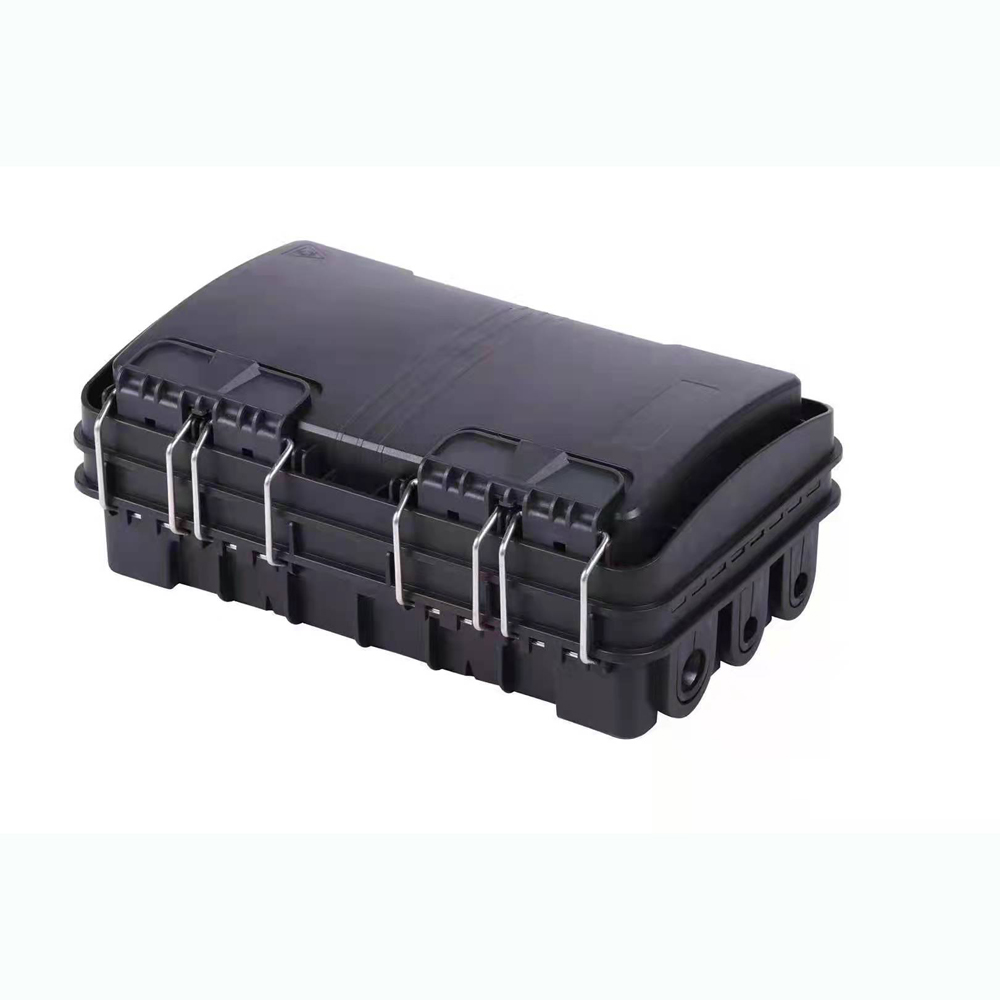

    Waterproof Fiber Optic Splice Closure Connection Box 1x8 LGX Splitter

    Ask Lasest Price
    Model Number : FKAFAT-002L
    Brand Name : Fongko
    Price : Negotiatable
    • Product Details
    • Company Profile

    Waterproof Fiber Optic Splice Closure Connection Box 1x8 LGX Splitter

    Product Description

    Aerial Fiber Access Terminal Closure

    This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped ≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.

    Features

    The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened. Can accommod ate two 1x8 PLC splitter LGX module or steel tube type;
    Anti-ultraviolet,anti- impact and waterproof function;
    Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing; Fiber optic cable can go in and out of the box without cut the cable.

    Technical parameters

    Optical fiber radius of curvature: ≥40mm
    Splice tray additional loss: ≤0.1dB
    Temperature range: -40°C ~ +60°C
    Anti side pressure: ≥2000N/10cm
    Impact resistance: ≥20N.m
    Protection class: IP65
    ModelFKAFAT-002L
    Dimension (mm)285*175*110
    Cable diameter (mm)Φ7-φ18
    Cable port2pcs 8-20mm round ports,4pcs 5-16mm round cable, 16pcs 3-7mm drop cable ports
    Max. Split ratio1pcs 1x8 LGX splitter
    Max. Adapter number9pcs
    Max. Splice tray1pc
    Max. Fusion splice24 cores
    Waterproof Fiber Optic Splice Closure Connection Box 1x8 LGX SplitterWaterproof Fiber Optic Splice Closure Connection Box 1x8 LGX SplitterWaterproof Fiber Optic Splice Closure Connection Box 1x8 LGX Splitter
