    12F 12 Core CCTV Camera Cable Indoor Flame Retardant Cable 6mm

    Indoor Bundle cable

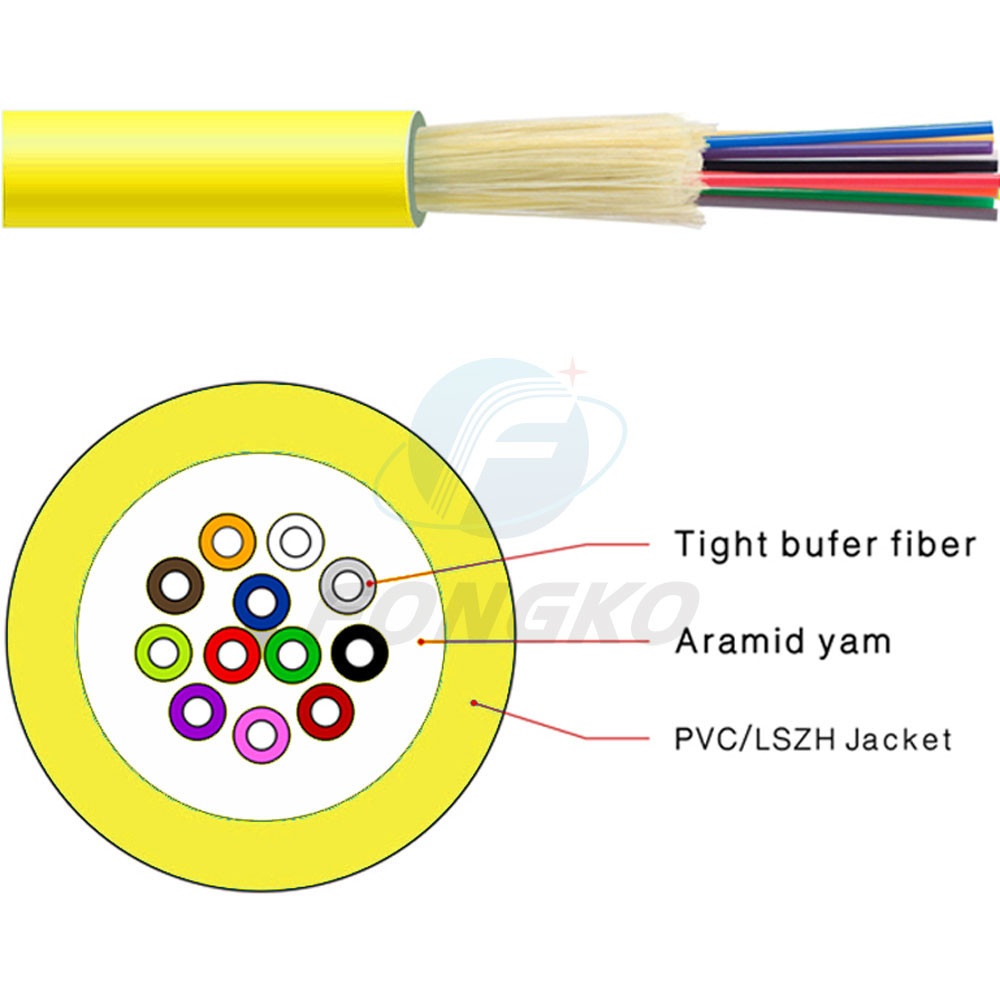

    indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.

    Applications:

    As building to building connecting cable, as pigtails movable connectors and patch cords for communication equipment.

    Features:

    Aramid yarn strength member ensure high tensile strength and long term stability in tranmission.
    Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft.
    Direct splicing between tight buffered cables and need no tie-in box or pigtail.
    MPC-02
    MPC-04
    MPC-06
    MPC-08
    MPC-10
    MPC-12
    Cable Diameter(mm)
    4.1±0.25
    4.8±0.25
    5.1±0.25
    6.2±0.25
    6.5±0.25
    6.8±0.25
    Cable Weight(kg/km)
    12
    20
    24
    29
    32
    35
    Tight Buffer Fiber Diameter
    900±50μm
    Mechanical Characteristics
    Tensile Strength
    Long Term
    80N
    60
    50
    Short Term
    150N
    120
    100
    Crush Resistance
    Long Term
    100N/100mm
    100N/100mm
    100N/100mm
    Short Term
    500N/100mm
    500N/100mm
    500N/100mm
    Bending Radius
    Dynamic
    20XD
    20XD
    20XD
    Static
    10XD
    10XD
    10XD
    Environmental Characteristics
    Transport Temperature
    -20℃~﹢60℃
    Storage Temperature
    -20℃~﹢60℃
    Installation Temperature
    -5℃~﹢50℃
    Operating Temperature
    -20℃~﹢60℃
