    2-12 Core BreakOut Indoor Fiber Optic Cable GJBFJH Single Mode G652D

    Ask Lasest Price
    Model Number : FKCAB-032
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

    2-12 Core BreakOut Indoor Fiber Optic Cable GJBFJH Single Mode G652D

    Gjfjhv Fiberoptisk Kabel Communication Cables Indoor Multi Purpose Break-Out Cable

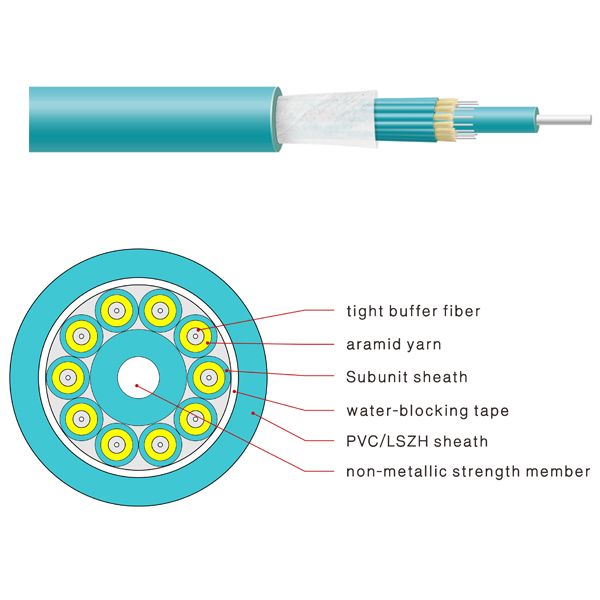

    GJBFJH cable,the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units,multi fibers as the subunit twist with FRP(and some cushions) into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.

    Features:

    1.LSZH sheath,anti-retardant,Self-extinguishing,Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.
    2.LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)
    3.Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
    4.Each sub cable contains aramid yarn,good bend performance,without gel,cleaning friendly,easy construction and connection.

    Fiber Count

    Subunit Diameter
    mm

    Cable Diameter
    mm

    Cable Weight
    Kg/km

    Tensile Strength
    Long/Short Term
    N

    Crush ResistanceLong/Short Term
    N/100m

    Bending Radius
    Static/Dynamic
    mm
    2
    2.0
    7.0±0.5
    45
    500/1000
    400/800
    30D/15D
    4
    2.0
    7.0±0.5
    45
    500/1000
    400/800
    30D/15D
    6
    2.0
    8.3±0.5
    62
    500/1000
    400/800
    30D/15D
    8
    2.0
    9.4±0.5
    85
    500/1000
    400/800
    30D/15D
    10
    2.0
    10.7±0.5
    109
    500/1000
    400/800
    30D/15D
    12
    2.0
    12.2±0.5
    140
    500/1000
    400/800
    30D/15D





    2-12 Core BreakOut Indoor Fiber Optic Cable GJBFJH Single Mode G652D2-12 Core BreakOut Indoor Fiber Optic Cable GJBFJH Single Mode G652D
