    24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm

    Ask Lasest Price
    Model Number : FKCAB-021
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

    24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm

    New Indoor Distribution Cable De Fibre Optique Communication Cables Gjsfjv Armored Fiber Optic Cable

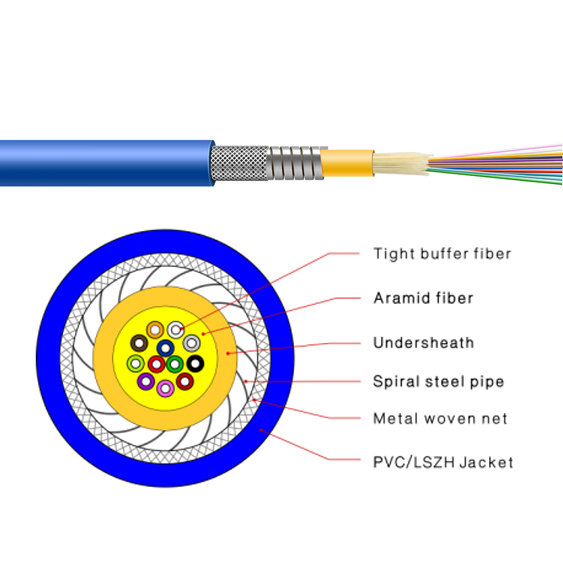

    The structure of the cable is put ф900μm or ф600μm tight buffer fibers with aramid yarn,then covered with a layer of PVC or LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally into fiber optic cable with PVC or LSZH sheath.

    Applications:

    Fiber optic equipment and instrument
    Backbone network to the equipment in the building
    Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
    All kinds of connector , fiber optic pigtails, patch cords.
    Long distance, outdoor/indoor cabling, trunking,etc
    Indoor cabling,building cabling,LAN, etc
    Small installation space cabling

    Features:

    High strength aramid yarn,high performance outer sheath. Good mechanical and environmental performance.
    Flame retardant outer sheath provide good safety.Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
    Optical Characteristics
    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm
    ≤3.0dB/km
    ≤3.0dB/km
    @1300nm
    ≤1.0dB/km
    ≤1.0dB/km
    @1310nm
    ≤0.36dB/km
    ≤0.36dB/km
    @1550nm
    ≤0.22dB/km
    ≤0.23dB/km
    Bandwidth
    (Class A)
    @850
    ≥500MHZ·km
    ≥500MHZ·km
    @1300
    ≥1000MHZ·km
    ≥600MHZ·km
    Numerical Aperture
    0.200±0.015NA
    0.275±0.015NA
    Cable Cut-off Wavelength λcc
    ≤1260nm
    ≤1480nm
    Technical Parameters

    Cable Type

    Fiber Count

    Tight Diameter
    mm

    Cable Diameter
    mm

    Cable Weight
    Kg/km

    Tensile Strength Long/Short Term
    N

    Crush Resistance Long/Short Term
    N/100m

    Bending Radius Static/Dynamic
    mm
    GJFJV+SV
    2
    0.6
    5.0
    42
    300/750
    200/1000
    20D/10D
    GJFJV+SV
    4
    0.6
    6.0
    65
    300/750
    200/1000
    20D/10D
    GJFJV+SV
    6
    0.6
    6.0
    66
    300/750
    200/1000
    20D/10D
    GJFJV+SV
    8
    0.6
    6.0
    68
    300/750
    200/1000
    20D/10D
    GJFJV+SV
    12
    0.6
    6.0
    70
    300/750
    200/1000
    20D/10D
    24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm
