    Direct Burial Armored Gjasfkv Indoor Fiber Optic Cable Multi Core Wire 24 Cores

    Ask Lasest Price
    Model Number : FKCAB-023
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

    Direct Burial Armored Gjasfkv Indoor Fiber Optic Cable Multi Core Wire 24 Cores

    Product Description

    Promotion Gjasfkv Fibra Funis Opticus Communication Cables Indoor Multi-Core Armored Fiber Optic Cable

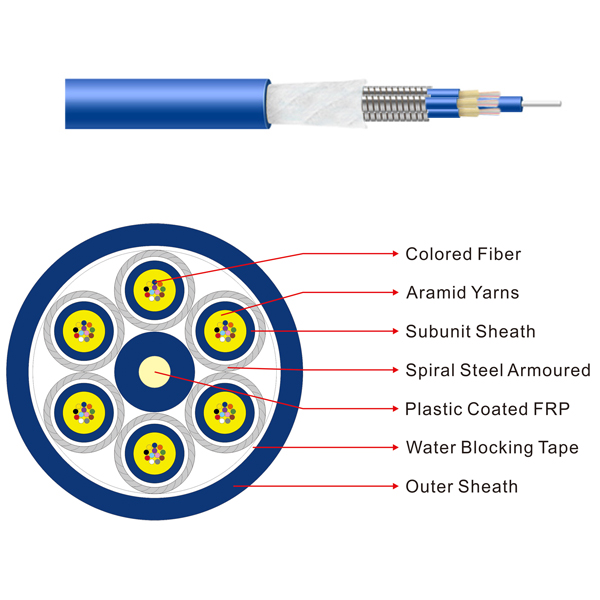

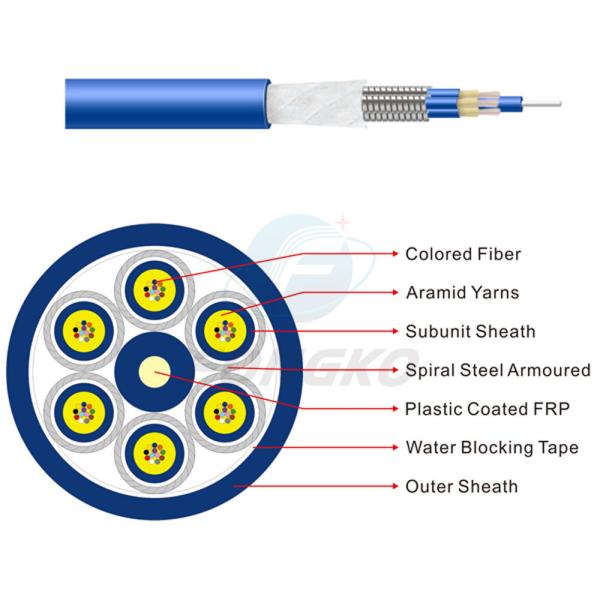

    The structure of the optical fiber cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable.

    Applications:

    Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection. Long-distance, outdoor, building wiring, trunking optical hybrid optical connection. The backbone of the tail cable, access to the equipment inside the building. Small installation space and occasional wiring.Various conventional connector products. Pigtail, jumper.

    Features:

    Bending radius is small, light weight, soft, flexible, easy to follow. Miniature cable, high-strength aramid reinforced, high-performance jacket material protection. Has good mechanical and environmental performance.Flat wire armored to improve the optical cable compression and anti-rat ability. Flame retardant or non-flame retardant outer jacket to provide good safety protection.
    Optical Characteristics
    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm
    ≤3.0dB/km
    ≤3.0dB/km
    @1300nm
    ≤1.0dB/km
    ≤1.0dB/km
    @1310nm
    ≤0.36dB/km
    ≤0.36dB/km
    @1550nm
    ≤0.22dB/km
    ≤0.23dB/km
    Bandwidth
    (Class A)
    @850
    ≥500MHZ·km
    ≥500MHZ·km
    @1300
    ≥1000MHZ·km
    ≥600MHZ·km
    Numerical Aperture
    0.200±0.015NA
    0.275±0.015NA
    Cable Cut-off Wavelength λcc
    ≤1260nm
    ≤1480nm
    Technical Parameters
    Cable type
    Cable Type
    Fiber number
    Fiber Count

    Subunit outer diameter
    mm
    Cable diameter
    mm
    Cable weight
    Kg / km
    Allowable tension
    Tensile Strength
    Long / Short Term
    N
    Allowable pressure
    Crush Resistance
    Long / Short Term
    N / 100m
    Bending radius
    Static / the Dynamic
    mm
    GJFJV + SV
    72
    3.0
    14.0
    42
    300/750
    200/1000
    20D / 10D
    GJFJV + SV
    144
    3.0
    18.0
    65
    300/750
    200/1000
    20D / 10D
    Direct Burial Armored Gjasfkv Indoor Fiber Optic Cable Multi Core Wire 24 CoresDirect Burial Armored Gjasfkv Indoor Fiber Optic Cable Multi Core Wire 24 Cores
