    24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE

    Ask Lasest Price
    Model Number : FKCAB-002
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

    24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE

    Product Description

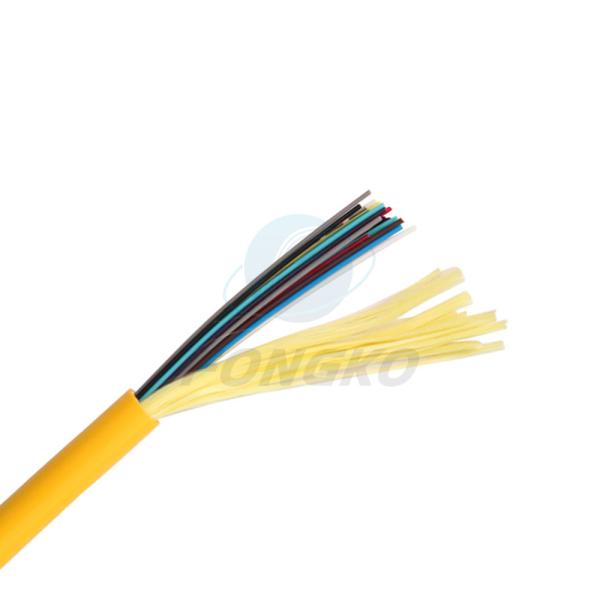

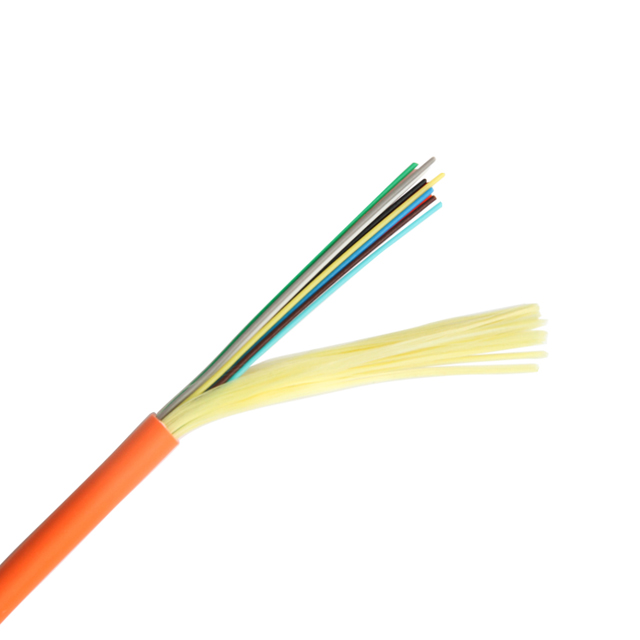

    Indoor Bundle cable

    indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.

    Applications:

    As building to building connecting cable, as pigtails movable connectors and patch cords for communication equipment.

    Features:

    Aramid yarn strength member ensure high tensile strength and long term stability in tranmission.
    Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft.
    Direct splicing between tight buffered cables and need no tie-in box or pigtail.
    No.
    Items
    Unit
    Specification
    G.652D
    1
    Mode Field Diameter
    1310nm
    μm
    9.2±0.4
    1550nm
    μm
    10.4±0.5
    2
    Cladding Diameter
    μm
    124.8±0.7
    3
    Cladding Non-Circularity
    %
    ≤0.7
    4
    Core-Cladding Concentricity Error
    μm
    ≤0.5
    5
    Coating Diameter
    μm
    245±5
    6
    Coating Non-Circularity
    %
    ≤6.0
    7
    Cladding-Coating Concentricity Error
    μm
    ≤12.0
    8
    Cable Cutoff Wavelength
    nm
    λcc≤1260
    9
    Attenuation(max.)
    1310nm
    dB/km
    ≤0.4
    1550nm
    dB/km
    ≤0.3



    24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE
