    12 Core FTTX Splice Case Fiber Joint Enclosure For FTTH FTTA Communication

    Ask Lasest Price
    Model Number : FKSCY001
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

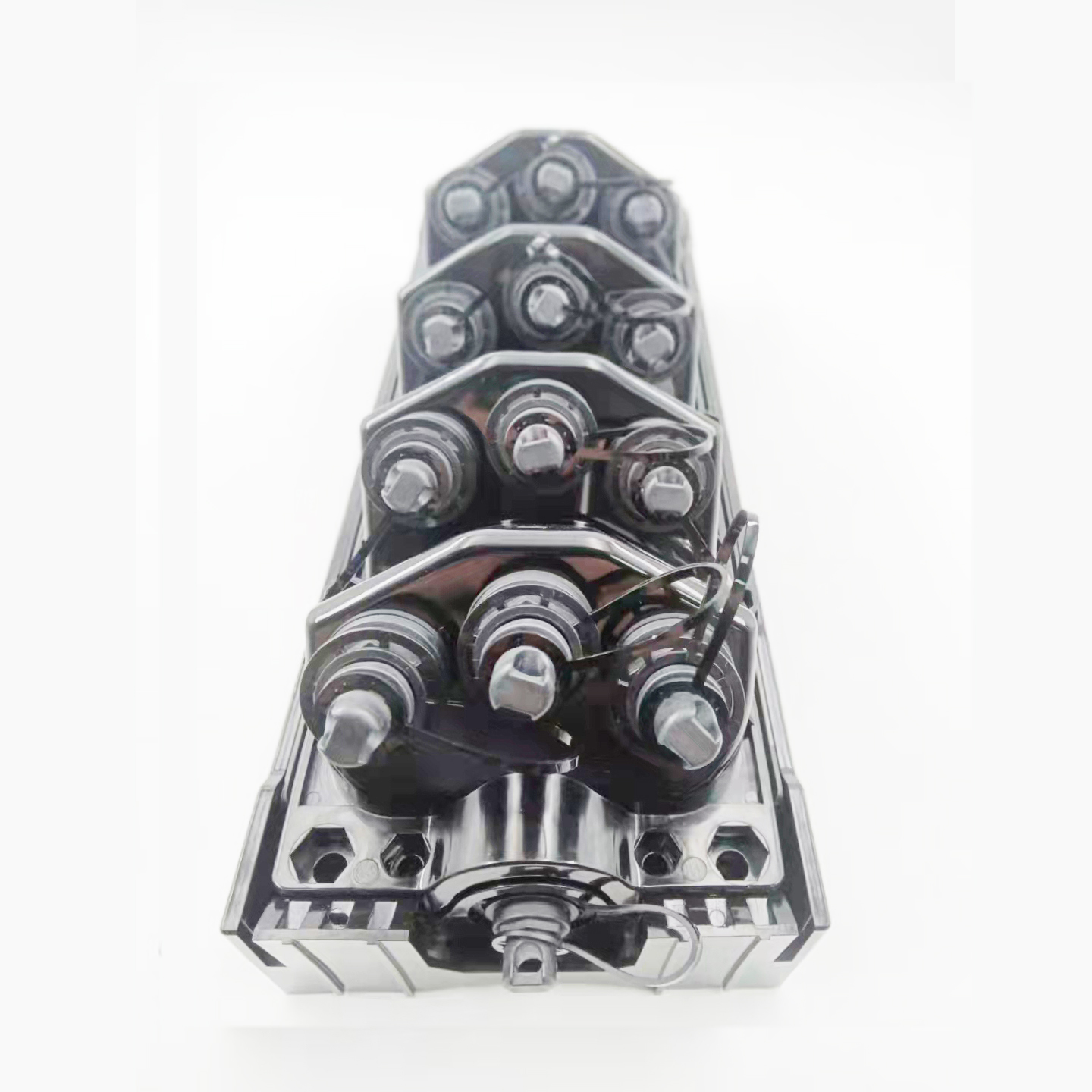

    12 Core FTTX Splice Case Fiber Joint Enclosure For FTTH FTTA Communication

    Product Introduction

    FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

    Features and Benefits

    *High compatibility: can be assembled ODVA, Hconn (OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
    *Factory-sealed or field assembly.
    *Strong enough: working under 1200N pulling force long term.
    *From 2 to 12 ports for single or multi-fiber harsh connectors.
    *Available with PLC or splice sleeve for fiber divide .
    *IP68 waterproof rating.
    *Wall-mounting, aerial installation or holding pole installation.
    * Decreased angle surface and height make sure no connector interfering when operating.
    *Meet IEC 61753-1 standard.
    *Cost effective: save 40% operating time.
    Dimension L*W*H

    365*137*90mm without cover

    375*142*120mm with cover

    Ingress ProtectionIP67
    Temperature Range-40~+80°
    Cable Strength MemberArmored or None Armored
    Cable TypeHybrid or None Hybrid
    Round Cable OD5.0mm to 14 mm
    Flat Cable Dimension4.6*8.9mm
    Cable Jacket MaterialLSZH , TPU or PE
    Bending Radius20D
    Cable Crush Resistance200N/cm long term
    Tensile Strength1200N long term
    UV ResistanceISO 4892-3
    Fire Protection RatingUL 94-V0
    Number of PLC1-2 PCS
    Number of Protection Sleeves1-24PCS
