    1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center

    Ask Lasest Price
    Model Number : FKPAT-014
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

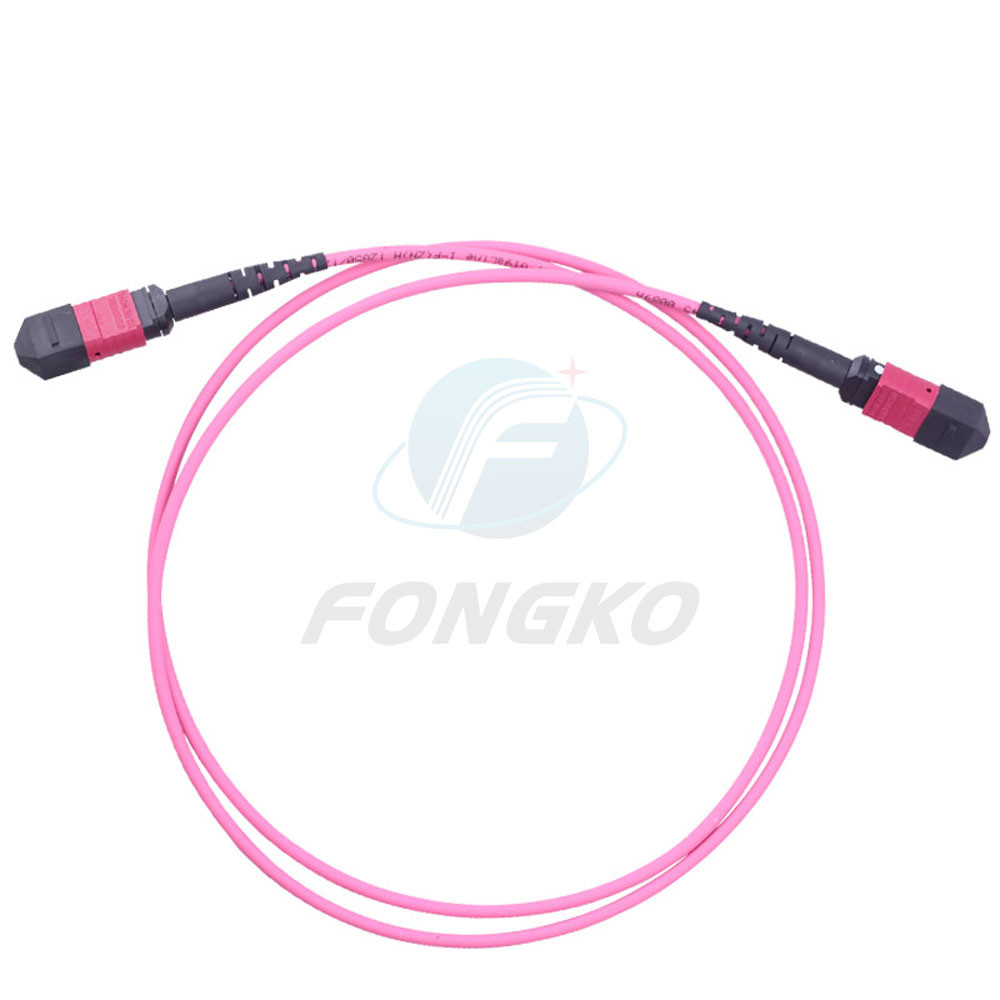

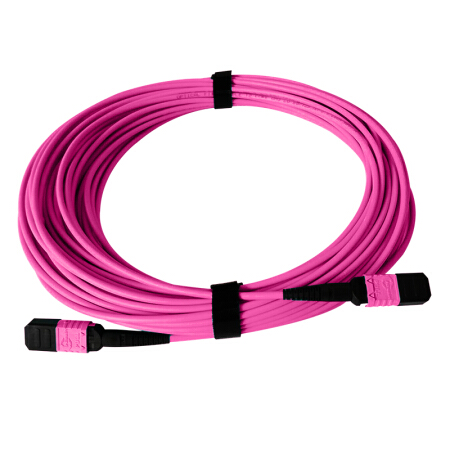

    1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center

    Product Description
    MPO/MTP harnesses Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications. Fongko provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;

    Features

    100% pre-terminated and tested in factory to ensure transfer performance
    Rapid configuration and networking, reduce installation time
    Supports 40G and 100G network applications

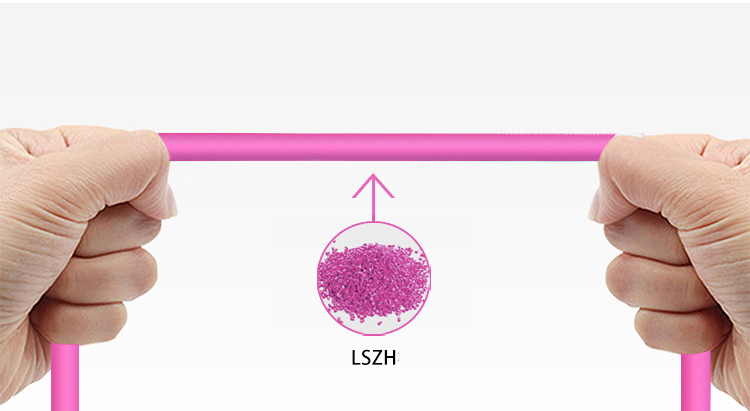

    Jacket material: LSZH, OFNR, OFNP available
    Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

    Application

    Data communication network
    Optical System Access network
    Storage area networking fiber channel
    High density architectures
    Performance LevelStandardElite
    ConnectorModeEndfaceIL(max) (dB)RL(min) (dB)IL(max) (dB)RL(min) (dB)
    MPO/MTPSM12F/APC≤0.70≥60≤0.35≥60
    24F/APC≤0.75≥60≤0.35≥60
    48F/APC≤0.75≥60
    MM12F/PC≤0.50≥20≤0.35≥20
    24F/PC≤0.50≥20≤0.35≥20
    48F/PC≤0.50≥20
    LC/SC/FC/STSMAPC≤0.30≥60≤0.10≥60
    UPC≤0.20≥50≤0.10≥50
    MMPC≤0.20≥30≤0.10≥30

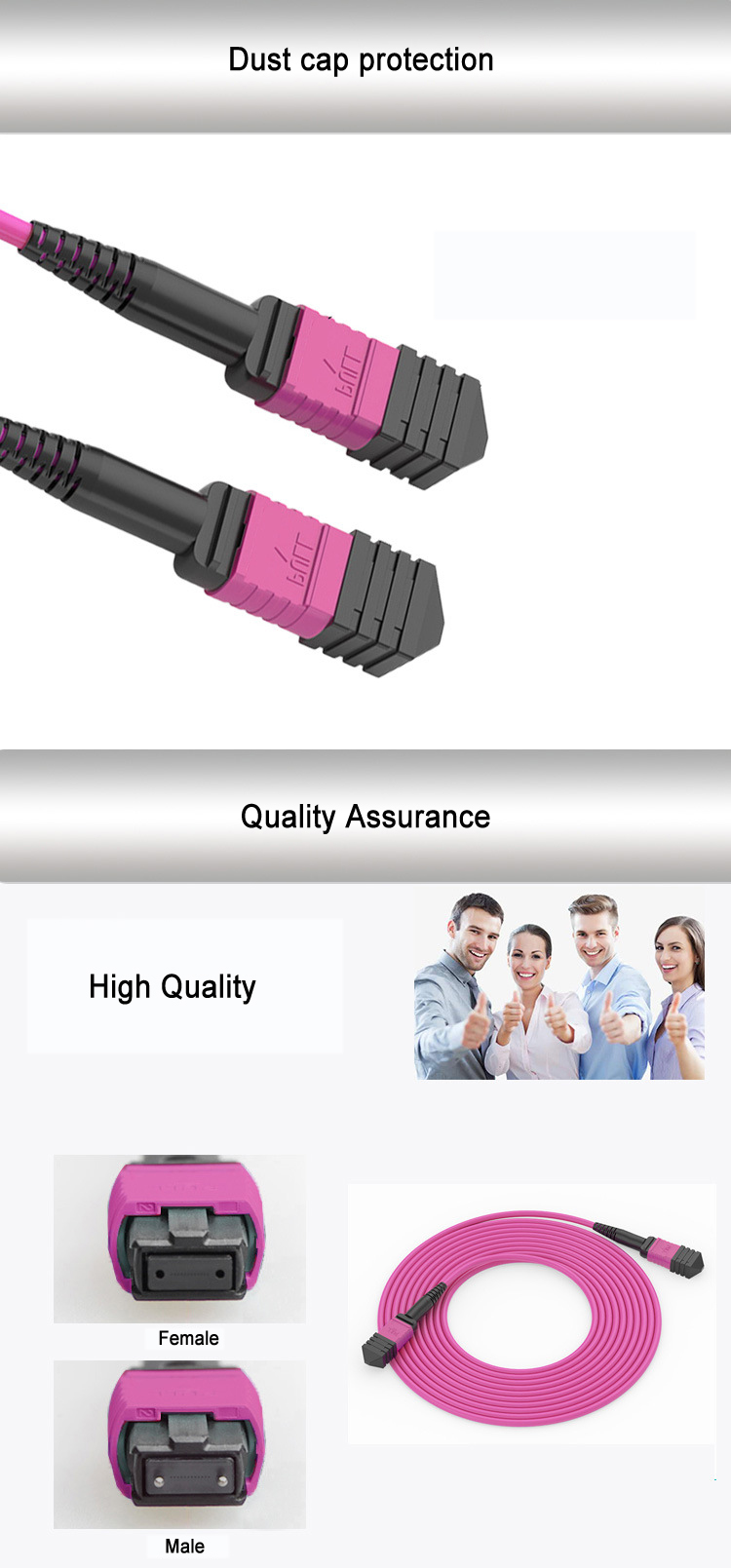

    1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center1 Meter 12 Cores OM4 MPO Fiber Optic Patch Cord And Pigtail Jumper For Data Center
