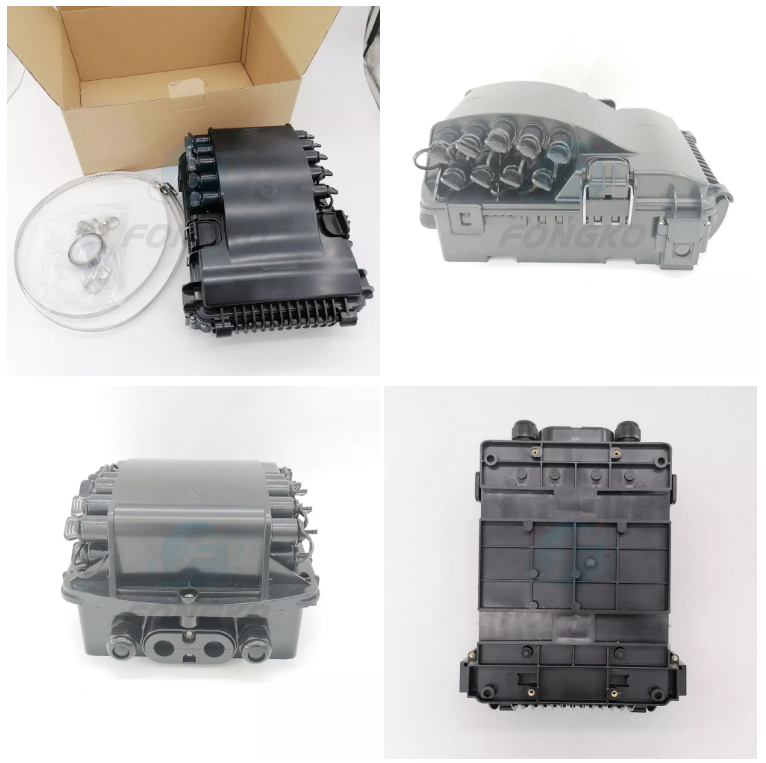

    8 Core FTTH Fiber Distribution Box , 8 Ports FTTH Termination Box

    Ask Lasest Price
    Brand Name : FONGKO
    Model Number : FK58-F
    Certification : CE
    Price : USD13-USD15
    Supply Ability : 10000 per/month
    Delivery Time : 2-5 days
    • Product Details
    • Company Profile

    8 Core FTTH Fiber Distribution Box , 8 Ports FTTH Termination Box

    8 Core FTTH Fiber Distribution Box Ports Termination Box


    1.Description

    FK58-F series optical cable terminal box is used for loop terminal optical fiber distribution, with the functions of fiber
    splicing, terminal and distribution. The input is for ordinary optical cable, and output for Pre-assembled single core FTTH drop cable.

    2.Features

    Different installation version supported
    1. Pole installation
    2. Wall mounted installation
    3. Aerial installation
    4. It can be equipped with optical fiber storage frame according to request.
    The bottom of the pole mounting box is equipped with two hoop mounting grooves, which is easy to install with the pole, stable and
    reliable.

    Working temperature:-5℃ ~ +45℃
    Storage temperature:-25℃ ~ +55℃
    Relative humidity:<95%
    Atmospheric pressure:70KPa ~ 106KPa

    3.Parameters

    Fiber optic connector durability: > 1000 times.
    Fiber optic connector IL: <0.3dB
    Which includes IL and interchangeability, repeatability, temperature change and other additional losses, in which the IL is not more than 0.2dB.
    Return loss
    UPC connector ≥50dB
    APC connector ≥60dB
    Max. Capacity: 18 Fibers
    Protection Level: IP66
    Material: ABS+PC.
    Dimension: 293*221*136mm
    Weight (include accessories) 1.5kgs
    It meets the direct fusion of 16 fiber optic cables,
